Power

Dual Channel Power Amplifier

Part of the CKS amplifiers family, engineered for commercial, industrial, auditoriums applications.

Models

5 models in this type.

Specifications are transcribed from the CKS catalogue. Open any model for its full technical detail, or carry it straight into an enquiry.

The entry point to the MPA series at 2 x 250W into 8Ω, with the same protection circuit as the larger models.

2 x 350W at 8Ω, rear-mounted level controls per channel with 3-pin XLR electronically balanced inputs.

2 x 400W at 8Ω with balanced XLR and speakon outputs for premium loudspeaker systems.

2 x 550W at 8Ω with an active crossover, advance protection against overload, over-temperature and short circuit.

The head of the Class-AB MPA series, 2 x 750W at 8Ω, twin high-speed cooling fans and an active crossover on board.

Compare

The specifications every model in this type shares, so the choice can be made on the numbers.

Model	8Ω stereo power	4Ω stereo power	2Ω stereo power	8Ω bridge mono	4Ω bridge mono	Frequency response	THD + N	Damping factor	Output topology	Dimension	Weight	Details
MPA-1200	2 x 250W	2 x 450W	2 x 600W	900W	1200W	20Hz~20KHz, ±0.1dB 1W/8Ω	< 0.05%	> 800	Class AB	W483 x H146 x D460mm	22.50Kg	Details for MPA-1200
MPA-1600	2 x 350W	2 x 550W	2 x 800W	1100W	1600W	20Hz~20KHz, ±0.1dB 1W/8Ω	< 0.05%	N/A	Class AB	W483 x H146 x D460mm	23Kg	Details for MPA-1600

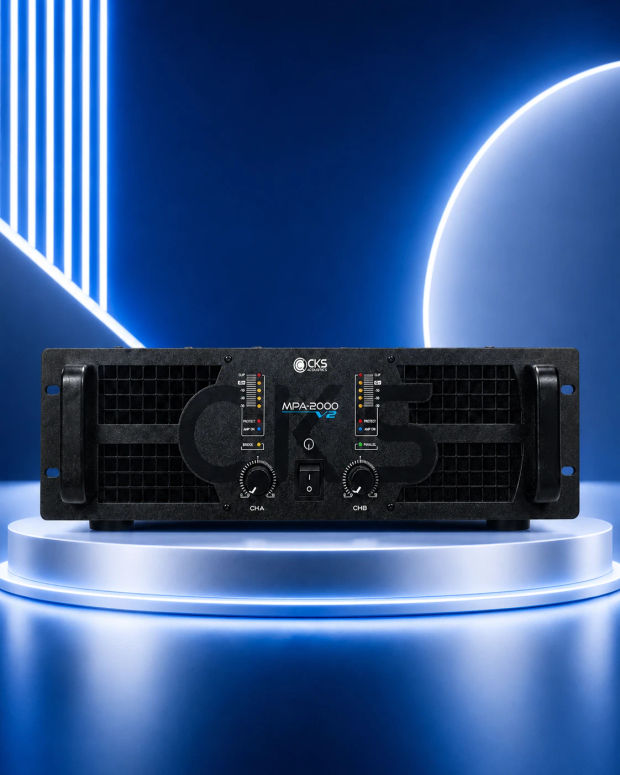

MPA-2000	2 x 400W	2 x 700W	2 x 1000W	1400W	2000W	20Hz~20KHz, ±0.1dB 1W/8Ω	< 0.05%	N/A	Class AB	W483 x H146 x D460mm	23Kg	Details for MPA-2000

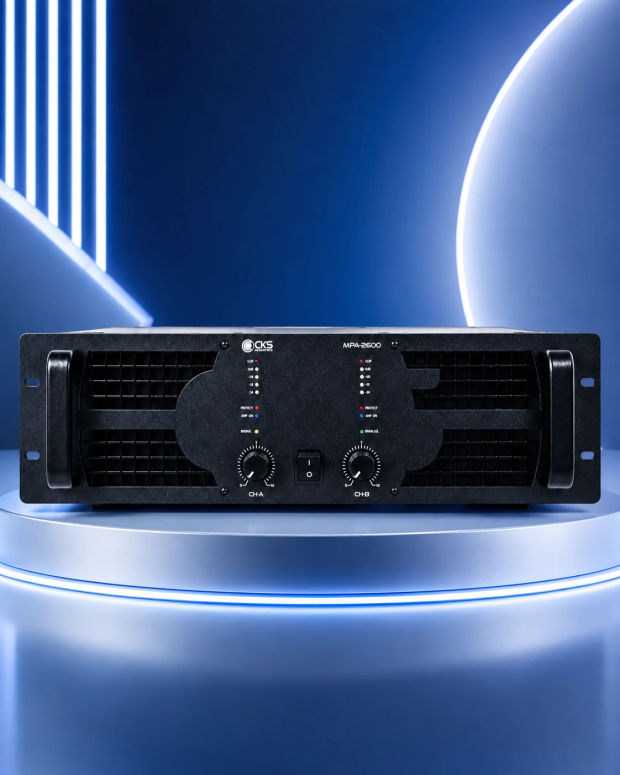

MPA-2600	2 x 550W	2 x 950W	2 x 1300W	1900W	2600W	20Hz~20KHz, ±0.1dB 1W/8Ω	< 0.05%	> 800	Class AB	W483 x H146 x D460mm	29Kg	Details for MPA-2600
MPA-3600	2 x 750W	2 x 1250W	2 x 1800W	2400W	3600W	20Hz~20KHz, ±0.1dB 1W/8Ω	< 0.05%	> 800 (8Ω, 20Hz-1KHz)	Class AB	W483 x H146 x D560mm	33Kg	Details for MPA-3600
