Ceiling Speaker
Part of the CKS speaker cabinet family, engineered for every venue, indoor, outdoor applications.
- Models
- 5
- Family
- Speaker Cabinet
- Applications
- 3
- Made in
- India
5 models in this type.
Specifications are transcribed from the CKS catalogue. Open any model for its full technical detail, or carry it straight into an enquiry.
20W ceiling speaker sharing the 5.25" + 1.5" driver pair for standard background-music zones.
- Rated power
- 20W RMS
- Speaker unit
- 5.25" woofer + 1.5" tweeter
- Frequency response
- 120Hz-18KHz
40W ceiling speaker with a 5.25" woofer and 1.5" tweeter for higher-output background music zones.
- Rated power
- 40W RMS
- Speaker unit
- 5.25" woofer + 1.5" tweeter
- Frequency response
- 120Hz-18KHz
5" ceiling speaker at 6W, compact and unobtrusive for background music applications.
- Rated power
- 6W RMS
- Speaker unit
- 5" woofer
- Frequency response
- 85Hz-20KHz
The smallest CKS ceiling speaker, 3" woofer at 6W for compact rooms.
- Rated power
- 6W RMS
- Speaker unit
- 3" woofer
- Frequency response
- 85Hz-20KHz
6W in-ceiling speaker with a 6" woofer, discreet finish for residential and commercial settings.
- Rated power
- 6W RMS
- Speaker unit
- 6" woofer
- Frequency response
- 150Hz-15KHz
Side by side.
The specifications every model in this type shares, so the choice can be made on the numbers.
| Model | Speaker unit | Rated power | Frequency response | Sensitivity | Material | Net weight | Colour | Input voltage (Max.) | Details |
|---|---|---|---|---|---|---|---|---|---|
| CCS-20W/B | 5.25" woofer + 1.5" tweeter | 20W RMS | 120Hz-18KHz | 88dB ±3dB | Metal+ABS | 0.780Kg | White / Black | N/A | Details for CCS-20W/B |
| CCS-40W/B | 5.25" woofer + 1.5" tweeter | 40W RMS | 120Hz-18KHz | 88dB ±3dB | Metal+ABS | 0.935Kg | White / Black | N/A | Details for CCS-40W/B |
| CKA-0505B/W | 5" woofer | 6W RMS | 85Hz-20KHz | 89dB (1W/1M) | Metal | 0.780Kg | White | 100V | Details for CKA-0505B/W |
| CKS-0306B/W | 3" woofer | 6W RMS | 85Hz-20KHz | 89dB (1W/1M) | Metal | 0.780Kg | White/Black | 100V | Details for CKS-0306B/W |

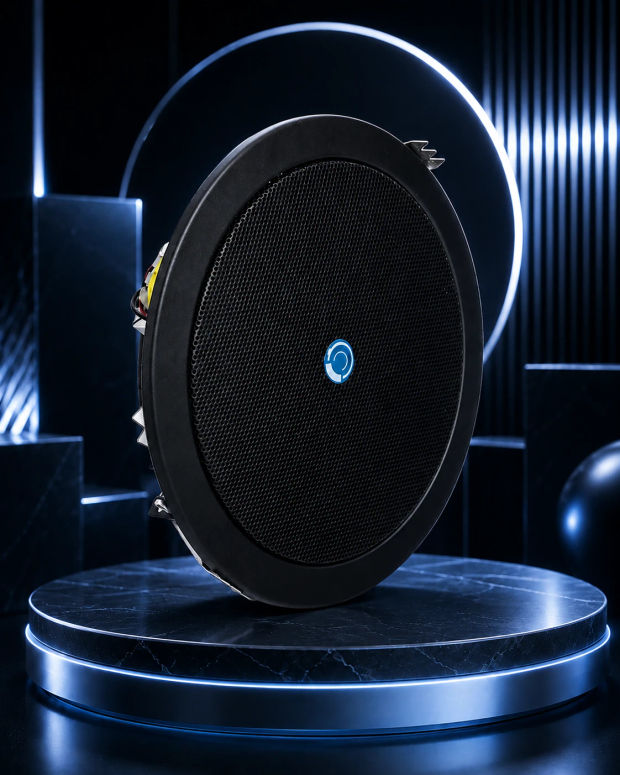

| CKS-0606B/W | 6" woofer | 6W RMS | 150Hz-15KHz | 92dB (1W/1M) | Metal | 0.935Kg | White / Black | 100V | Details for CKS-0606B/W |
