Dual Channel Power Amplifier · Amplifiers

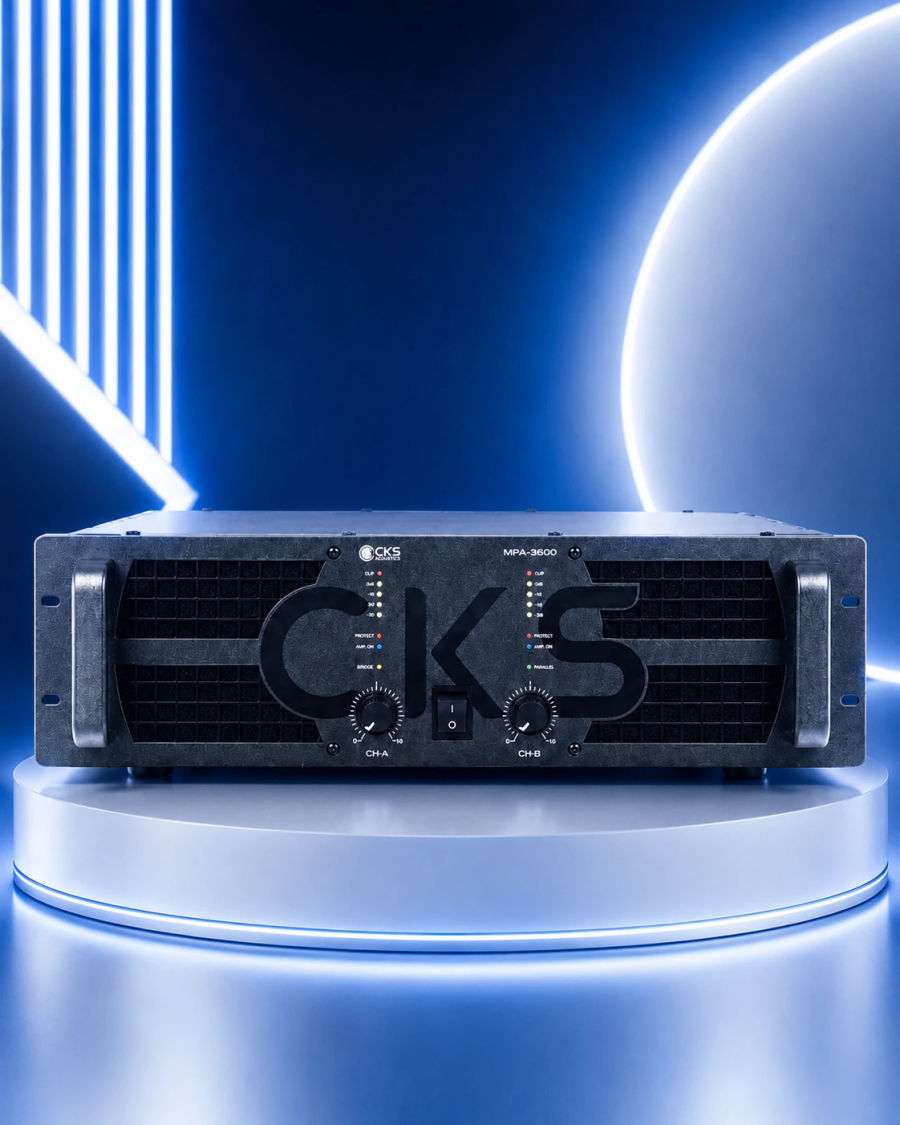

MPA-3600
The head of the Class-AB MPA series, 2 x 750W at 8Ω, twin high-speed cooling fans and an active crossover on board.
- Frequency response
- 20Hz~20KHz, ±0.1dB 1W/8Ω
- Weight
- 33Kg
- 8Ω stereo power
- 2 x 750W
- 4Ω stereo power
- 2 x 1250W
Manufactured in Gandhinagar, Gujarat. Specifications transcribed from the CKS 2026 catalogue.
Alternatives
Others in this range.
Models an integrator would weigh against MPA-3600, nearest first. All dual channel power amplifier
Specification
Every published figure.
| 8Ω stereo power | 2 x 750W |
|---|---|
| 4Ω stereo power | 2 x 1250W |
| 2Ω stereo power | 2 x 1800W |
| 8Ω bridge mono | 2400W |
| 4Ω bridge mono | 3600W |
| Frequency response | 20Hz~20KHz, ±0.1dB 1W/8Ω |
| THD + N | < 0.05% |
| Signal to noise ratio | > 95dB |
| Damping factor | > 800 (8Ω, 20Hz-1KHz) |
| Output topology | Class AB |
| Dimension | W483 x H146 x D560mm |
| Weight | 33Kg |
