Class H Power Amplifier
Part of the CKS amplifiers family, engineered for commercial, industrial, auditoriums applications.
- Models
- 3
- Family
- Amplifiers
- Applications
- 3
- Made in
- India
Models
3 models in this type.
Specifications are transcribed from the CKS catalogue. Open any model for its full technical detail, or carry it straight into an enquiry.
CDJ-12.0K
Class-H flagship at 2 x 2000W into 8Ω, with intelligent clip limiter and output relay zero-current switching.
- Frequency response
- 20Hz~20KHz ±0.3dB
- 8Ω stereo RMS
- 2 x 2000W
- 4Ω stereo RMS
- 2 x 3000W
CDJ-4.0K
2 x 1000W into 8Ω, the compact CDJ with over-heat and short-circuit protection built in.
- Frequency response
- 20Hz~20KHz ±0.3dB
- 8Ω stereo RMS
- 2 x 1000W
- 4Ω stereo RMS
- 2 x 1700W

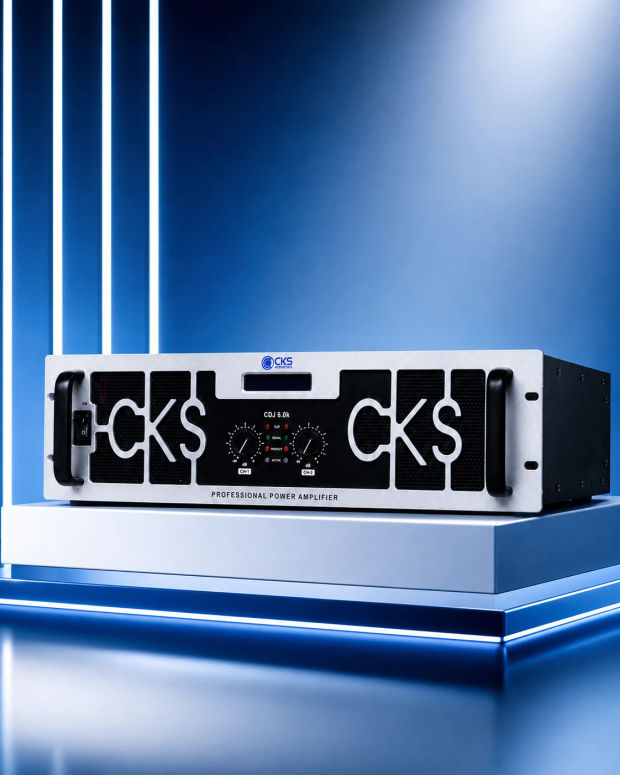

CDJ-6.0K
2 x 1350W into 8Ω with soft start, limiter circuit and DC fault protection.
- Frequency response
- 20Hz~20KHz ±0.3dB
- 8Ω stereo RMS
- 2 x 1350W
- 4Ω stereo RMS
- 2 x 2300W
Compare
Side by side.
The specifications every model in this type shares, so the choice can be made on the numbers.
| Model | 8Ω stereo RMS | 4Ω stereo RMS | 2Ω stereo RMS | 8Ω bridge mode | 4Ω bridge mode | Frequency response | THD + N | S/N ratio | Damping factor | Weight | Dimension | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CDJ-12.0K | 2 x 2000W | 2 x 3000W | 2 x 2500W | 4000W | 8000W | 20Hz~20KHz ±0.3dB | < 0.03% @ 8Ω 1KHz | > 98dB | > 300 | 49.2Kg | 780 x 590 x 203mm | Details for CDJ-12.0K |
| CDJ-4.0K | 2 x 1000W | 2 x 1700W | 2 x 2700W | 2000W | 4000W | 20Hz~20KHz ±0.3dB | < 0.03% @ 8Ω 1KHz | > 90dB | > 400 | 37.5Kg | 660 x 590 x 203mm | Details for CDJ-4.0K |
| CDJ-6.0K | 2 x 1350W | 2 x 2300W | 2 x 3000W | 2700W | 5400W | 20Hz~20KHz ±0.3dB | < 0.03% @ 8Ω 1KHz | > 95dB | > 400 | 45.2Kg | 710 x 600 x 203mm | Details for CDJ-6.0K |
