CWM-114

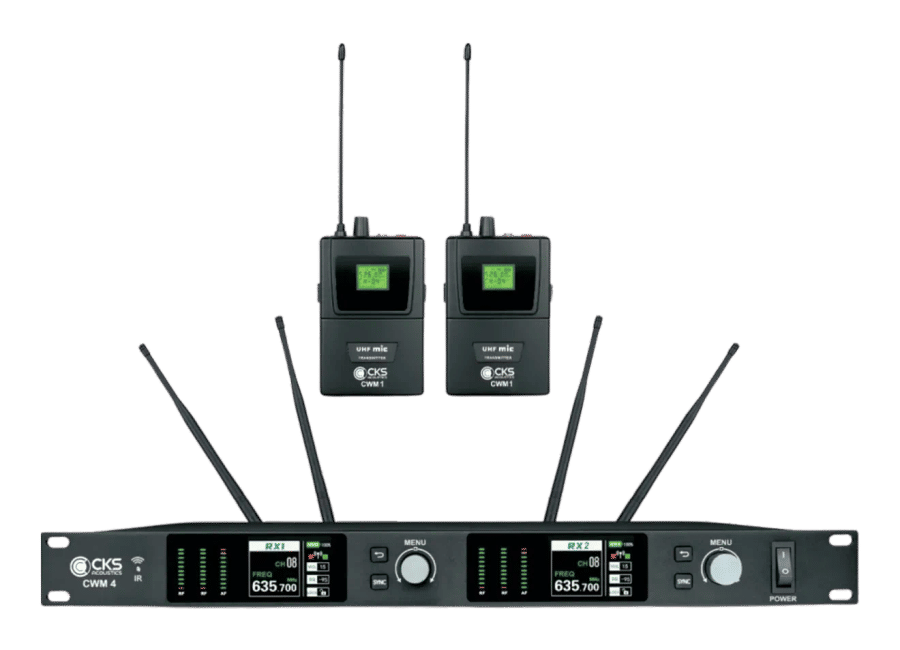

True-diversity twin body-pack wireless system, double-tuner automatic signal selection with digital modulation frequency synthesis.
- Frequency range
- 600 - 690MHz (custom range on request)
- Receiver
- True diversity, double tuner automatic signal selection
- Modulation mode
- FM
- Bandwidth
- 90MHz
Manufactured in Gandhinagar, Gujarat. Specifications transcribed from the CKS 2026 catalogue.
Alternatives
Others in this range.
Models an integrator would weigh against CWM-114, nearest first. All antenna distribution system
Specification
Every published figure.
| Receiver | True diversity, double tuner automatic signal selection |
|---|---|
| Frequency range | 600 - 690MHz (custom range on request) |
| Modulation mode | FM |
| Bandwidth | 90MHz |
| S/N | > 60dB when input is 6dBV |
| Power supply | DC 12V ~ 16V 10W |
| Output sockets | XLR balanced and 6.3 unbalanced |
| Transmitter | Body-pack, PLL synthesis, ±45KHz max deviation |
| RF power output | 10mW / 30mW |
| Battery consumption | approx. 8 Hrs |
