Antenna Distribution System
Part of the CKS microphones family, engineered for auditoriums, education, conference rooms applications.
- Models
- 3
- Family
- Microphones
- Applications
- 3
- Made in
- India
Models
3 models in this type.
Specifications are transcribed from the CKS catalogue. Open any model for its full technical detail, or carry it straight into an enquiry.
CAD-8200
Ultra-wideband 8-channel antenna distribution and spectrum management controller with an IPS display for real-time frequency monitoring.
- Channels
- 8-channel antenna distribution, four AC 12V power interfaces
- Frequency range
- 450MHz - 950MHz
- Total gain
- 0dB, ±1dB

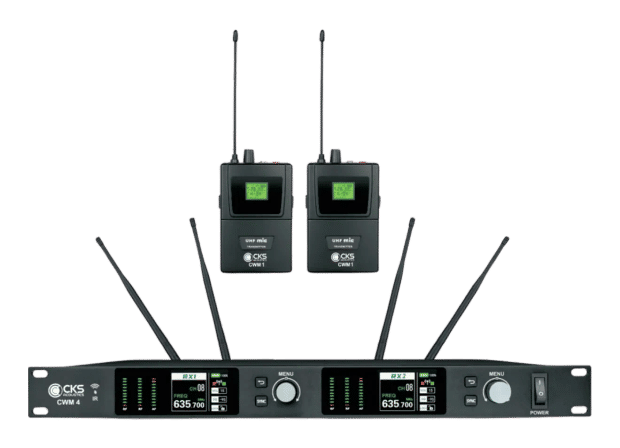

CWM-114
True-diversity twin body-pack wireless system, double-tuner automatic signal selection with digital modulation frequency synthesis.
- Receiver
- True diversity, double tuner automatic signal selection
- Frequency range
- 600 - 690MHz (custom range on request)
- Modulation mode
- FM

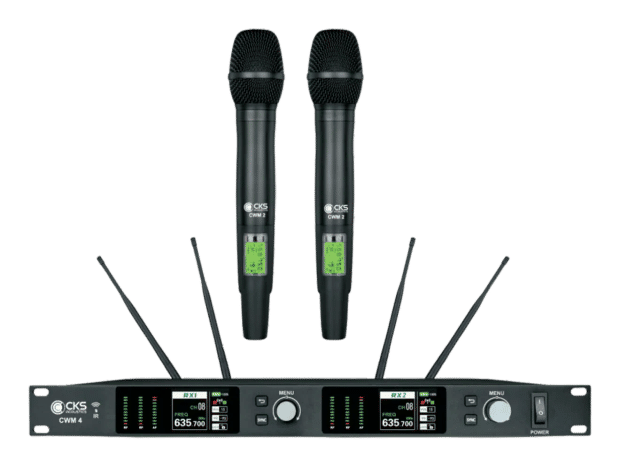

CWM-224
The handheld twin of the CWM-114, true-diversity receiver with two handheld transmitters on PLL frequency synthesis.
- Receiver
- True diversity, double tuner automatic signal selection
- Frequency range
- 600 - 690MHz (can do required freq.)
- Modulation mode
- FM
Compare
Side by side.
The specifications every model in this type shares, so the choice can be made on the numbers.
| Model | Frequency range | Receiver | Modulation mode | Bandwidth | S/N | Power supply | Output sockets | Transmitter | RF power output | Battery consumption | Details |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CAD-8200 | 450MHz - 950MHz | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Details for CAD-8200 |
| CWM-114 | 600 - 690MHz (custom range on request) | True diversity, double tuner automatic signal selection | FM | 90MHz | > 60dB when input is 6dBV | DC 12V ~ 16V 10W | XLR balanced and 6.3 unbalanced | Body-pack, PLL synthesis, ±45KHz max deviation | 10mW / 30mW | approx. 8 Hrs | Details for CWM-114 |
| CWM-224 | 600 - 690MHz (can do required freq.) | True diversity, double tuner automatic signal selection | FM | 90MHz | > 60dB when input is 6dBV | DC 12V ~ 16V 10W | XLR balanced and 6.3 unbalanced | Handheld, PLL synthesis, carrier 600-690MHz | 10mW / 30mW | approx. 8 Hrs | Details for CWM-224 |
