Two Zone PA Amplifier · Amplifiers

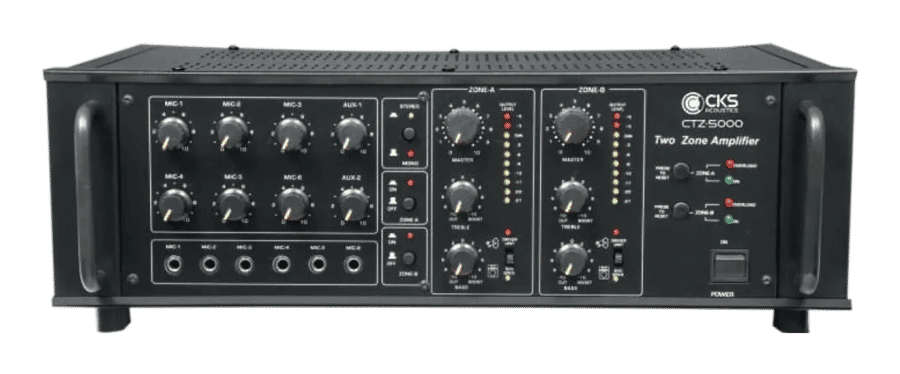

CTZ-5000
The 500W two-zone amplifier, same independent zone control on a 24V DC fallback.
- Frequency response
- 50Hz-15KHz ±3dB per zone
- Weight
- 24Kg
- Power output per channel
- 300W + 300W RMS Max
- @ 10% THD
- 250W + 250W RMS
Manufactured in Gandhinagar, Gujarat. Specifications transcribed from the CKS 2026 catalogue.
Alternatives
Others in this range.
Models an integrator would weigh against CTZ-5000, nearest first. All two zone pa amplifier
Specification
Every published figure.
| Power output per channel | 300W + 300W RMS Max |
|---|---|
| @ 10% THD | 250W + 250W RMS |
| @ 5% THD | 200W + 200W RMS |
| @ 2% THD | 175W + 175W RMS |
| Input channel | 6 x Mic 0.6mV/4.7KΩ, 2 x Aux 100mV/470KΩ |
| Frequency response | 50Hz-15KHz ±3dB per zone |
| Speaker output | 4Ω, 8Ω, 70V, 100V Line for each zone |
| Digital player | Mp3 with USB, SD card and Bluetooth |
| Power supply | AC 220-240 50/60Hz, DC 24V (2 x 12V car battery) |
| Dimension | W 512 x H 180 x D 390 |
| Weight | 24Kg |
