Speaker Cabinet
Part of the CKS speaker cabinet family, engineered for every venue, indoor, outdoor applications.
- Models
- 10
- Family
- Speaker Cabinet
- Applications
- 3
- Made in
- India
10 models in this type.
Specifications are transcribed from the CKS catalogue. Open any model for its full technical detail, or carry it straight into an enquiry.

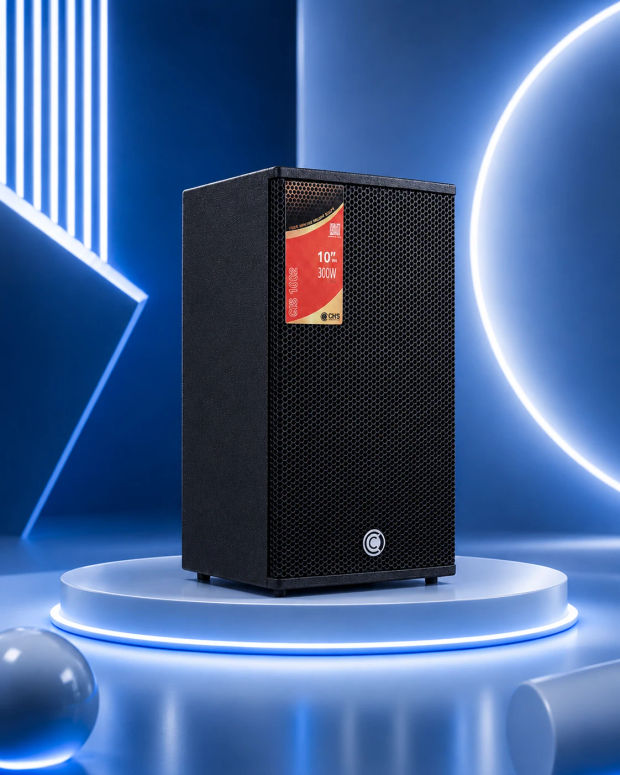

2-way 10" cabinet in the same light-weight-heavy-duty CIS line.
- Material
- Wood
- Speaker type
- 2 Way
- Speaker size
- 10"
The largest CIS at 2-way 12" and 550W, for the biggest rooms in the range.
- Material
- Wood
- Speaker type
- 2 Way
- Speaker size
- 12"
Compact 2-way 8" cabinet, light weight heavy duty, usable as a PA system or stage monitor.
- Material
- Wood
- Speaker type
- 2 Way
- Speaker size
- 8"
15" cabinet at 580W or 1000W, the mid-power entry in the professional cabinet range.
- Power output
- 580W / 1000W
- Frequency response
- 36Hz-20KHz
- Max rated SPL
- 133dB*
Deluxe 15" cabinet rated to 1700W, sharing the SRX line's Russian birch enclosure and network topology.
- Power output
- 1000W / 1700W
- Frequency response
- 36Hz-20KHz
- Max rated SPL
- 133dB

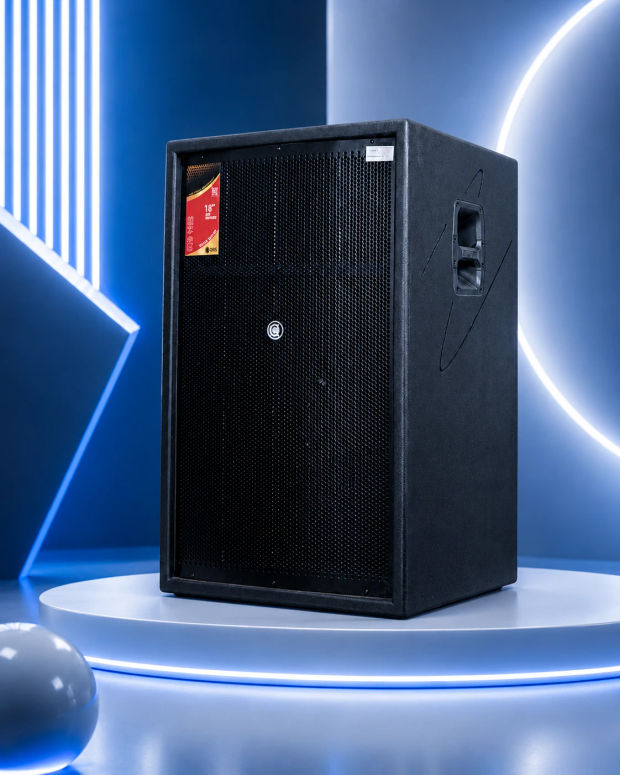

18" long-excursion passive subwoofer at 1200W, low weight and compact for mobile and fixed installs.
- Power output
- 1200W
- Frequency response
- 36Hz-200Hz
- Max. rated SPL
- 129dB
The 2000W-rated CTB-118, same 18" long-excursion driver and side-handle cabinet for extended low-frequency operation.
- Power output
- 2000W
- Frequency response
- 36Hz-200Hz
- Max. rated SPL
- 129dB
Professional 15" cabinet on a Russian birch plywood enclosure, offered at 320W, 520W or 900W network configurations.
- Power output
- 320W / 520W / 900W
- Frequency response
- 36Hz-20KHz
- Max. rated SPL
- 133dB
12" version of the SRX cabinet, 480W to 900W across three network configurations.
- Power output
- 480W / 580W / 900W
- Frequency response
- 36Hz-20KHz
- Max rated SPL
- 133dB
15" SRX cabinet at 1000W or 1700W, with advanced network topology and deep room-filling lows.
- Power output
- 1000W / 1700W
- Frequency response
- 36Hz-20KHz
- Max rated SPL
- 133dB
Side by side.
The specifications every model in this type shares, so the choice can be made on the numbers.
| Model | Power output | Frequency response | Nominal impedance | SPL @ 1W/1m | Speaker | Details |
|---|---|---|---|---|---|---|
| CIS-1002 | N/A | N/A | N/A | N/A | N/A | Details for CIS-1002 |
| CIS-1202 | N/A | N/A | N/A | N/A | N/A | Details for CIS-1202 |
| CIS-802 | N/A | N/A | N/A | N/A | N/A | Details for CIS-802 |
| CKS-215 | 580W / 1000W | 36Hz-20KHz | 4Ω | 102dB | CK 15 450 E/BMB - 2Nos | Details for CKS-215 |
| CSP-1000DLX | 1000W / 1700W | 36Hz-20KHz | 4Ω | 102dB | CK 15 450E / 450BMB - 2Nos | Details for CSP-1000DLX |
| CTB-118 -1200RC | 1200W | 36Hz-200Hz | 8Ω | 102dB | CTB-118 -1200SUB | Details for CTB-118 -1200RC |
| CTB-118 -2000RC | 2000W | 36Hz-200Hz | 8Ω | 102dB | CTB-118 -2000SUB | Details for CTB-118 -2000RC |
| SRX-715 | 320W / 520W / 900W | 36Hz-20KHz | 8Ω | 102dB | CK 15 450E / 450BMB / 800RMB - 2Nos | Details for SRX-715 |
| SRX-722 | 480W / 580W / 900W | 36Hz-20KHz | 4Ω | 102dB | CK 12 200/250/450 RMB - 2Nos | Details for SRX-722 |
| SRX-725 | 1000W / 1700W | 36Hz-20KHz | 4Ω | 102dB | CK 15 450/800 BMB/RMB - 2Nos | Details for SRX-725 |
