PA Mixer Amplifier · Amplifiers

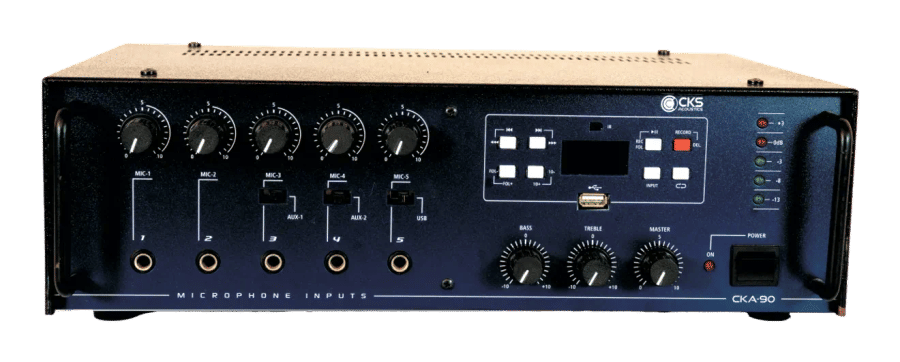

CKA-90
160W mixer amplifier with pre-amp and line output for connecting a booster or recording the programme.
- Power output
- 160W Max, 90W RMS @ 10% THD
- Frequency response
- 50Hz~15KHz ±2dB
- Input channels
- 5 x Mic 1mV/4.7KΩ, 2 x Aux 70mV/100KΩ
- Weight
- 8.3Kg
Manufactured in Gandhinagar, Gujarat. Specifications transcribed from the CKS 2026 catalogue.
Alternatives
Others in this range.
Models an integrator would weigh against CKA-90, nearest first. All pa mixer amplifier
Specification
Every published figure.
| Power output | 160W Max, 90W RMS @ 10% THD |
|---|---|
| Input channels | 5 x Mic 1mV/4.7KΩ, 2 x Aux 70mV/100KΩ |
| Frequency response | 50Hz~15KHz ±2dB |
| Tone controls | Bass ±10dB @ 100Hz, Treble ±10dB @ 10KHz |
| Speaker output | 4Ω, 8Ω, 16Ω, 100V Line |
| Digital player | Mp3 with USB, SD card, Bluetooth and recording |
| Power supply | AC 220-240V 50/60Hz, DC 12V |
| Dimension | W360 x H130 x D300mm |
| Weight | 8.3Kg |
