CKD 10.8K

Category

Description

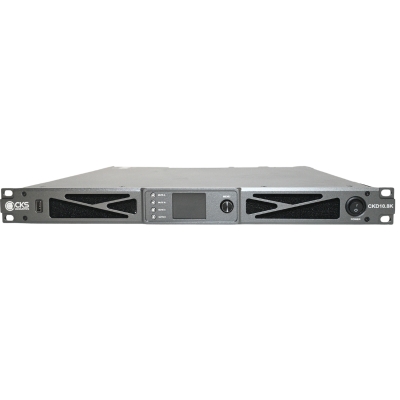

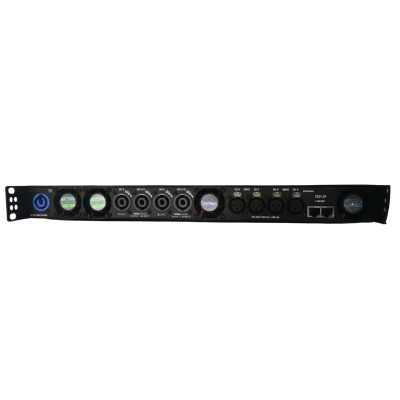

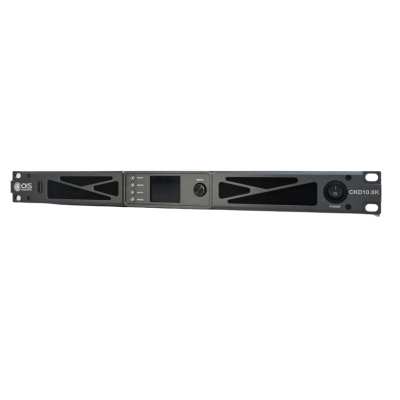

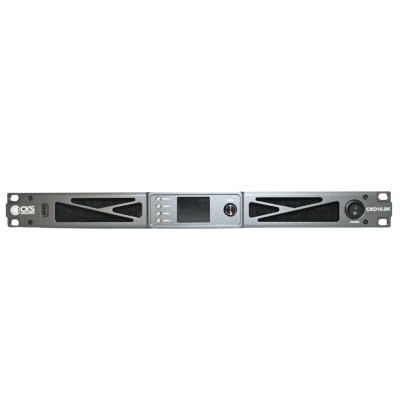

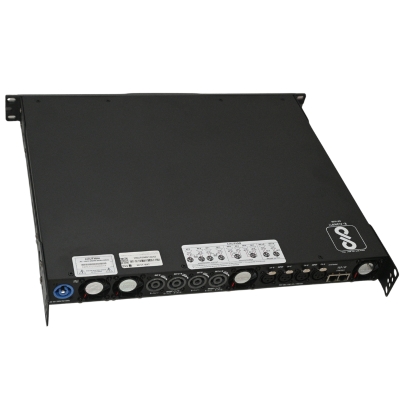

The CKD 10.8K is a compact and efficient 4-channel Class D amplifier designed for professional audio setups such as conferences, auditoriums, and DJ events. With an output capacity of up to 2700W per channel at 2Ω and 5000W per channel in bridge mode at 4Ω, this amplifier is engineered for powerful, distortion-free performance.

Highlights:

  • High-efficiency output with ultra-low idle power consumption (only 110W).

  • Delivers up to 4×2700W @ 2Ω and 2×5000W @ 4Ω bridge.

  • Integrated clip limiter, soft start, and DC/overheat protection.

  • Compact size and lightweight design (11 kg) for easy installation and transport.

  • Ideal for small to mid-sized venues requiring clear, high-output audio.

CKD 10.8K Specifications

  • Power Consumption (Idle): <110W
  • Power Consumption (Max): <4000W
  • Voltage Gain: 41.7dB (0.775V:94V)
  • Output Power Stereo RMS: 8Ω: 4×1100W, 4Ω: 4×1830W, 2Ω: 4×2700W
  • Bridge Mode Output RMS: 16Ω: 2×2200W, 8Ω: 2×3600W, 4Ω: 2×5000W
  • Net Weight: 11 Kg
  • Gross Weight: 15 Kg
  • Dimensions (L×W×D): 483×415×45 mm
  • Package Size (L×W×D): 610×500×100 mm
