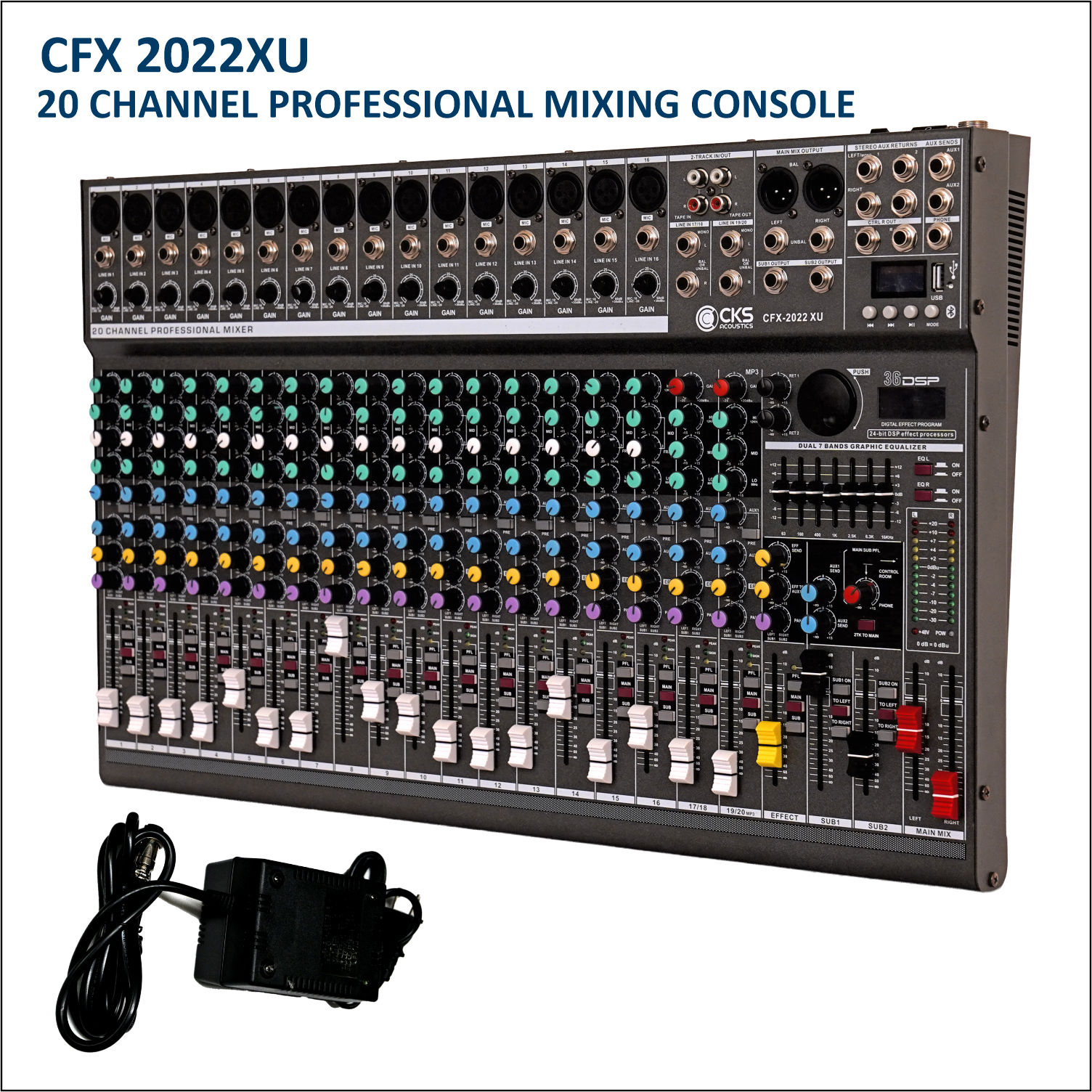

CFX 2022XU

Description

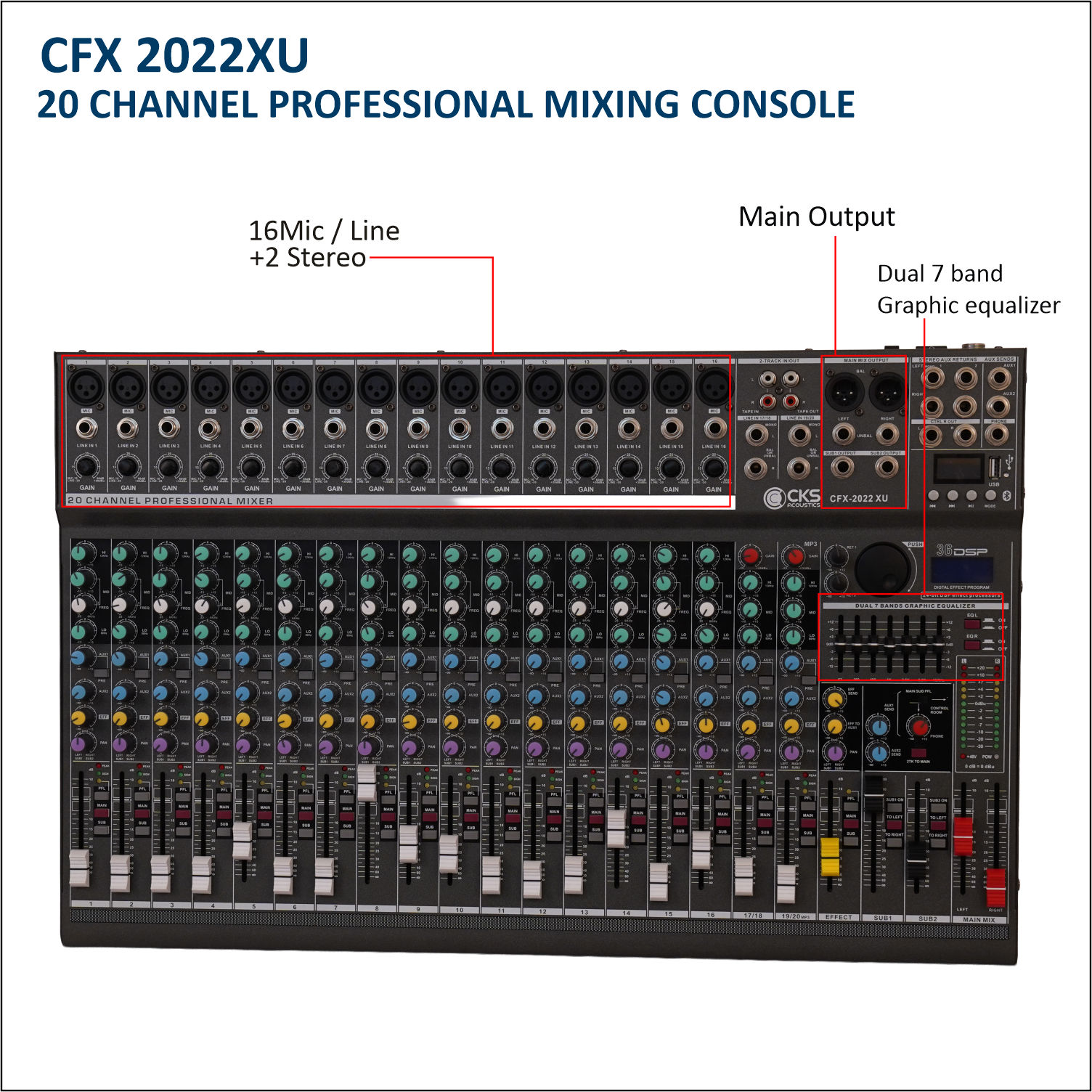

Dual 7 band Graphic Equalizer
Rotary control knobs per channel
24 bit DSP effect processing
2 sub group out, 2 main mix out
36 Effect modes, power-off memory, CD liquid crystal display, easy to operate.
The two groups are equipped with independent outputs to make the connection more flexible
Built in 36 kinds of DSP effect. It is comparable with the popular X5 effect device in the market Single + 48V power switch
Mp3 large screen player, effect display, high quality dual display
High quality USB music player with Bluetooth connection
2 auxiliary transmitters for easy expansion of equipment
60mm long life high resolution pusher
External lossless power supply to minimize the background noise
Global phantom power
48KHz sampling frequency.
Standard double 12 segment level meter.



  Input                                          16 mic/line+stereo



            Nominal gain(mic,line,stereoline) 60db

Max gain(mic,line,stereoline) 80db

Input level sensitivity (20hz-20khz)

mic(gain min/gain max) (+10 to+60 db)

line(gain min/gain max) (-10 to +40 db)

Input impedance Mic input: ≥ 1.0k 2 / line output: ≥ 10k Q

Main output level(neminal/max) Balanced XLR socket, unbalanced 1 / 4 socket

Main output impedance About 24052 for balanced type and 12052 for unbalanced type

Frequency response 20Hz~20KHz (+1, -3dB)

Total harmonic distortion ≤0.01% (+4dB, 1KHz)

Signal to noise ratio ≥ 113dBQ

Equalisation (mix/stereo line) 12KHz + 1-15dB MF : 5KHz + 1-15dB LF : 80Hz + /-15dB Effect 36 Effects 24-bit DSP, 48KHz

Phantom supply 48VDC

Power supply AC100~120V/200~240V 50/60Hz

dimensions(W’D’H)mm 60.9*38*8

                      Net weight(kgs) 8.6
