CSM 6000C CSM 6000D

Category

Description

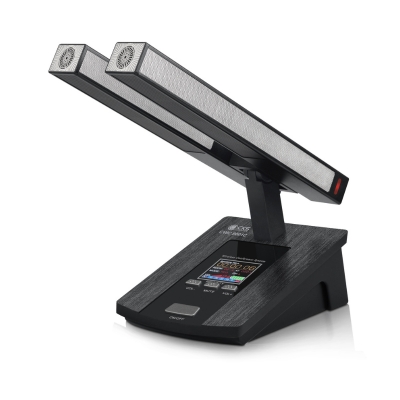

CSM 6000C / CSM 6000D – Conference Microphone Units

The CSM 6000C and CSM 6000D are part of a high-quality digital conference system engineered for exceptional voice clarity, reliable performance, and modern design. These units are ideal for use in professional environments such as boardrooms, auditoriums, and government or corporate conference halls.

Key Features:

  • Premium Cardioid Hi-Fi Condenser Capsule for accurate sound pickup and reduced background noise.

  • Wide Frequency Response (20Hz–20kHz) ensures natural voice reproduction and clarity.

  • Advanced Circuit Design provides strong anti-interference performance and system reliability.

  • Elegant and Patent-Protected Appearance, combining functionality with high-end aesthetics.

  • Red Ring Indicator clearly shows microphone ON/OFF status.

  • LCD Display and Luminous Button Design enhances usability and visual feedback.

  • Built-in Speaker & Earphone Output with volume controlled by the central unit.

  • Voice-Activated Function: Microphones automatically activate when the speaker begins talking.

  • Hand-in-Hand Daisy Chain Installation, making setup quick and maintenance simple.

CSM 6000C Specifications

  • Working Voltage: DC24V
  • Cable: 8P-DIN
  • Capsule: Cardioid
  • Sensitivity: -46dBV/Pa
  • Frequency Response: 20Hz∼20kHz
  • Input Impedance: 2 kΩ
  • Directional 0° / 180°: >20 dB (1kHz)
  • Equivalent Noise: 20 dBA (SPL)
  • Max SPL: 125 dB (TDH<3%)
  • S/N Ratio: >80dB
  • T.H.D.: <0.05%
  • Earphone Load: >10Ω
  • Earphone Output: 10mV
  • Earphone Jack: 3.5mm x 1
  • Size (LxWxH): 145x45x4mm
  • Weight: 0.45kg
