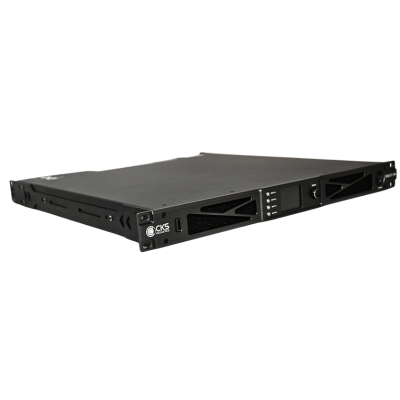

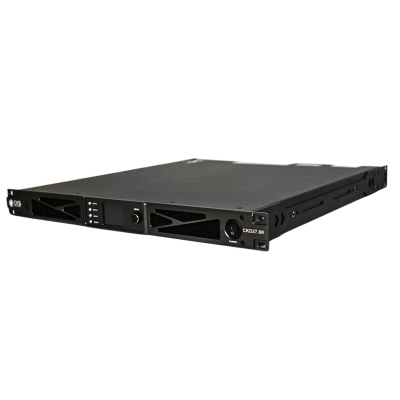

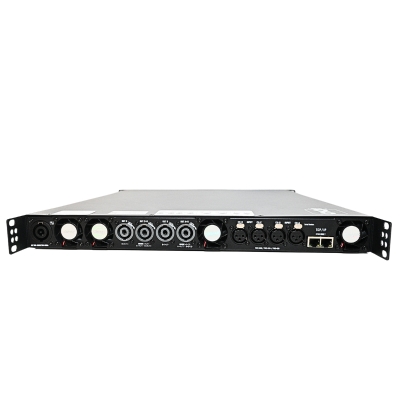

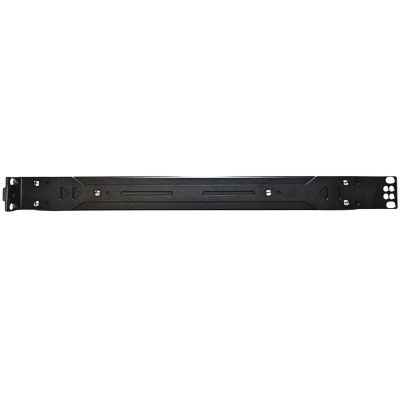

CKD 27.6K

Category

Description

The CKD 27.6K is the flagship of the CKD Series, delivering massive power output for professional-grade audio setups. Capable of reaching 6900W per channel at 2Ω and an astonishing 11750W in 4Ω bridge mode, it is built to power massive sound systems in large auditoriums, outdoor festivals, and high-demand environments.

Highlights:

  • Highest output in the CKD lineup: 2×11750W @ 4Ω bridge.

  • Supports a wide input range and provides 47dB voltage gain.

  • Rugged chassis design with robust protection (overload, short circuit, ultrasonic, etc.).

  • Still lightweight (11.5 kg) relative to its power class.

  • Designed for large-scale sound systems and critical professional applications.

CKD 27.6K Specifications

  • Power Consumption (Idle): <170W
  • Power Consumption (Max): <10000W
  • Voltage Gain: 47dB (0.775V:150V)
  • Output Power Stereo RMS: 8Ω: 4×2800W, 4Ω: 4×4550W, 2Ω: 4×6900W
  • Bridge Mode Output RMS: 16Ω: 2×5600W, 8Ω: 2×9250W, 4Ω: 2×11750W
  • Net Weight: 11.5 Kg
  • Gross Weight: 15.5 Kg
  • Dimensions (L×W×D): 500×483×45 mm
  • Package Size (L×W×D): 655×630×130 mm
