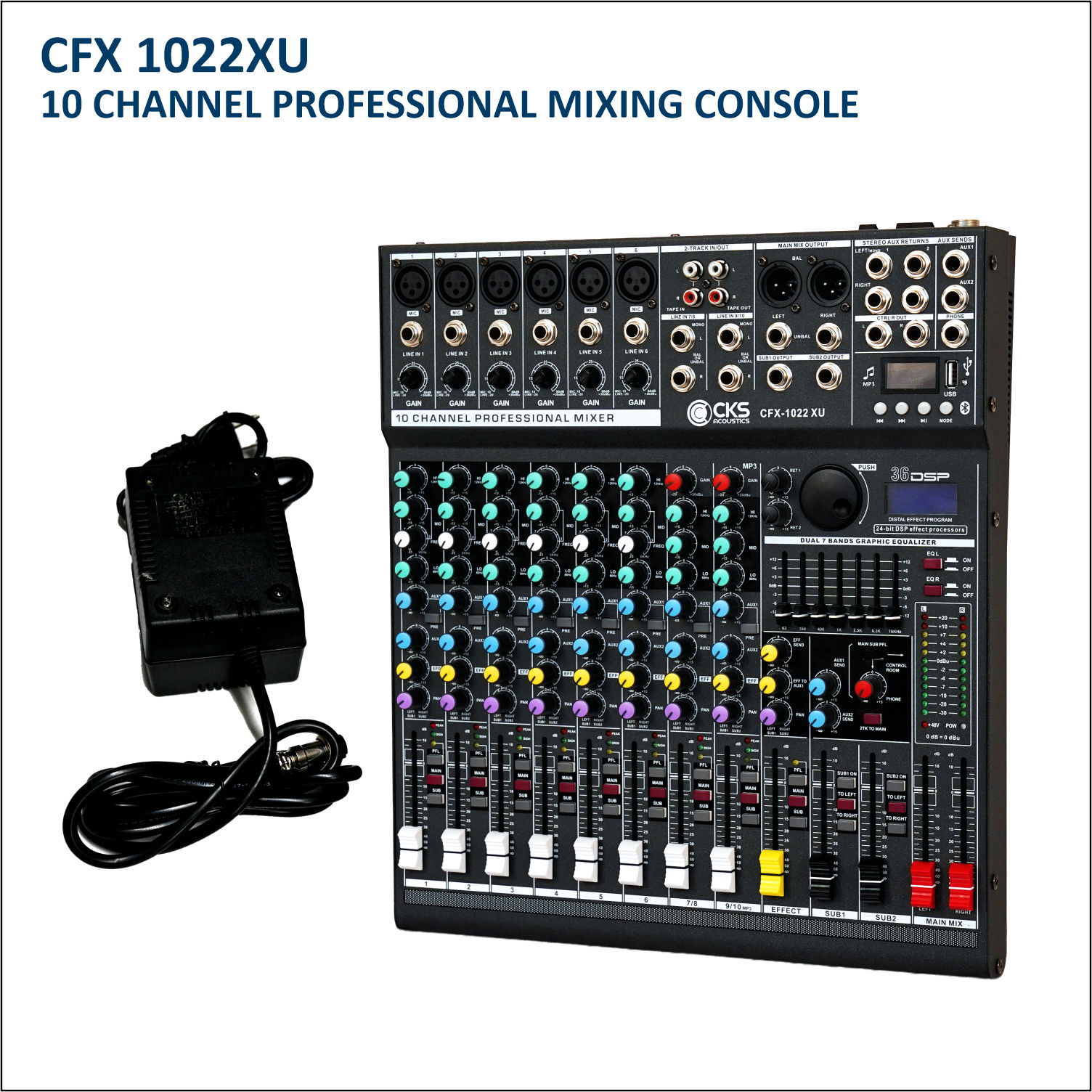

CFX 1022XU

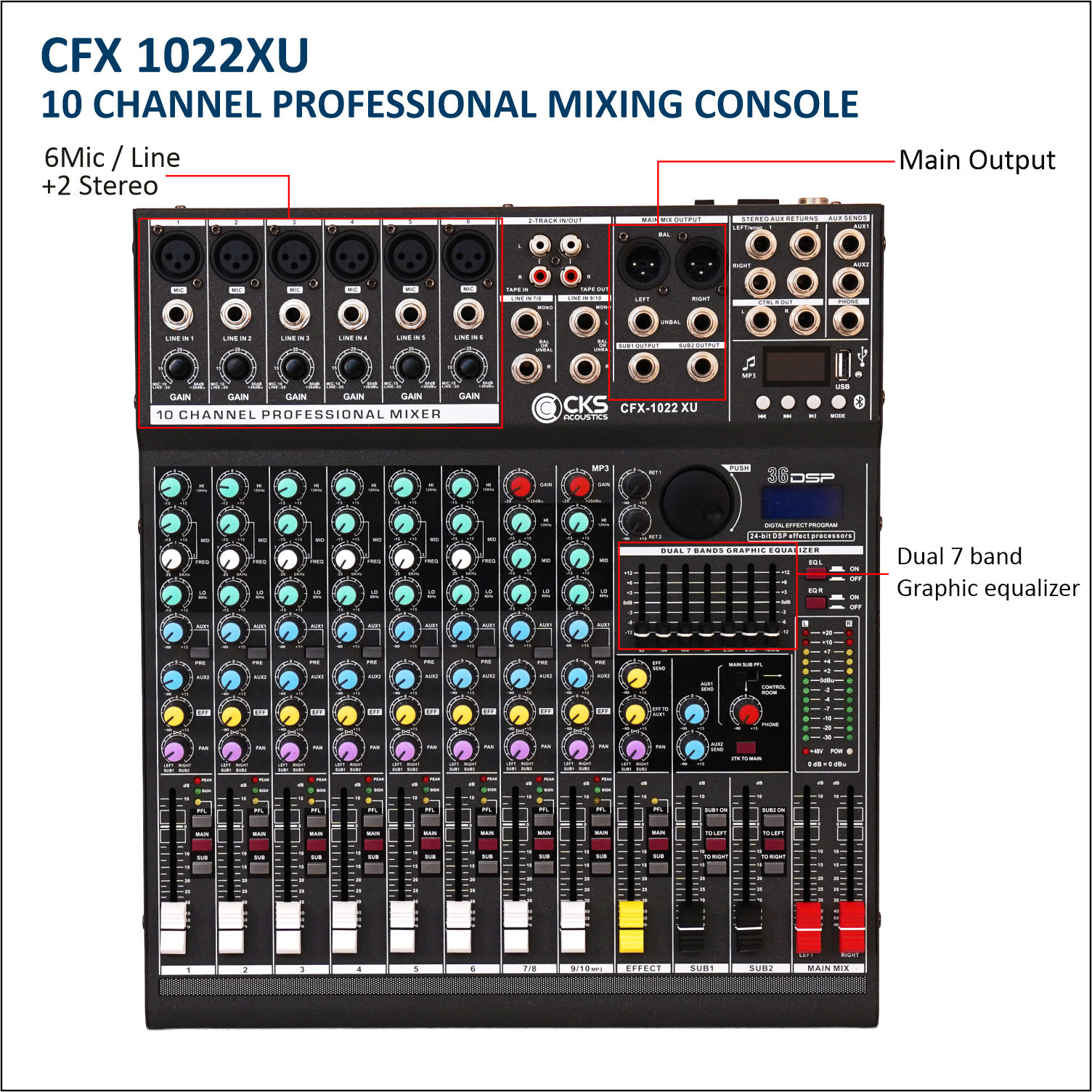

Input 6 mic/line+stereo

Nominal gain(mic,line,stereoline) 60db

Max gain(mic,line,stereoline) 80db

Input level sensitivity (20hz-20khz)

mic(gain min/gain max) (+10 to+60 db)

line(gain min/gain max) (-10 to +40 db)

Input impedance Mic input: ≥ 1.0k 2 / line output: ≥ 10k Q

Main output level(neminal/max) Balanced XLR socket, unbalanced 1 / 4 socket

Main output impedance About 24052 for balanced type and 12052 for unbalanced type

Frequency response 20Hz~20KHz (+1, -3dB)

Total harmonic distortion ≤0.01% (+4dB, 1KHz)

Signal to noise ratio ≥ 113dBQ

Equalisation (mix/stereo line) 12KHz + 1-15dB MF : 5KHz + 1-15dB LF : 80Hz + /-15dB Effect 36 Effects 24-bit DSP, 48KHz

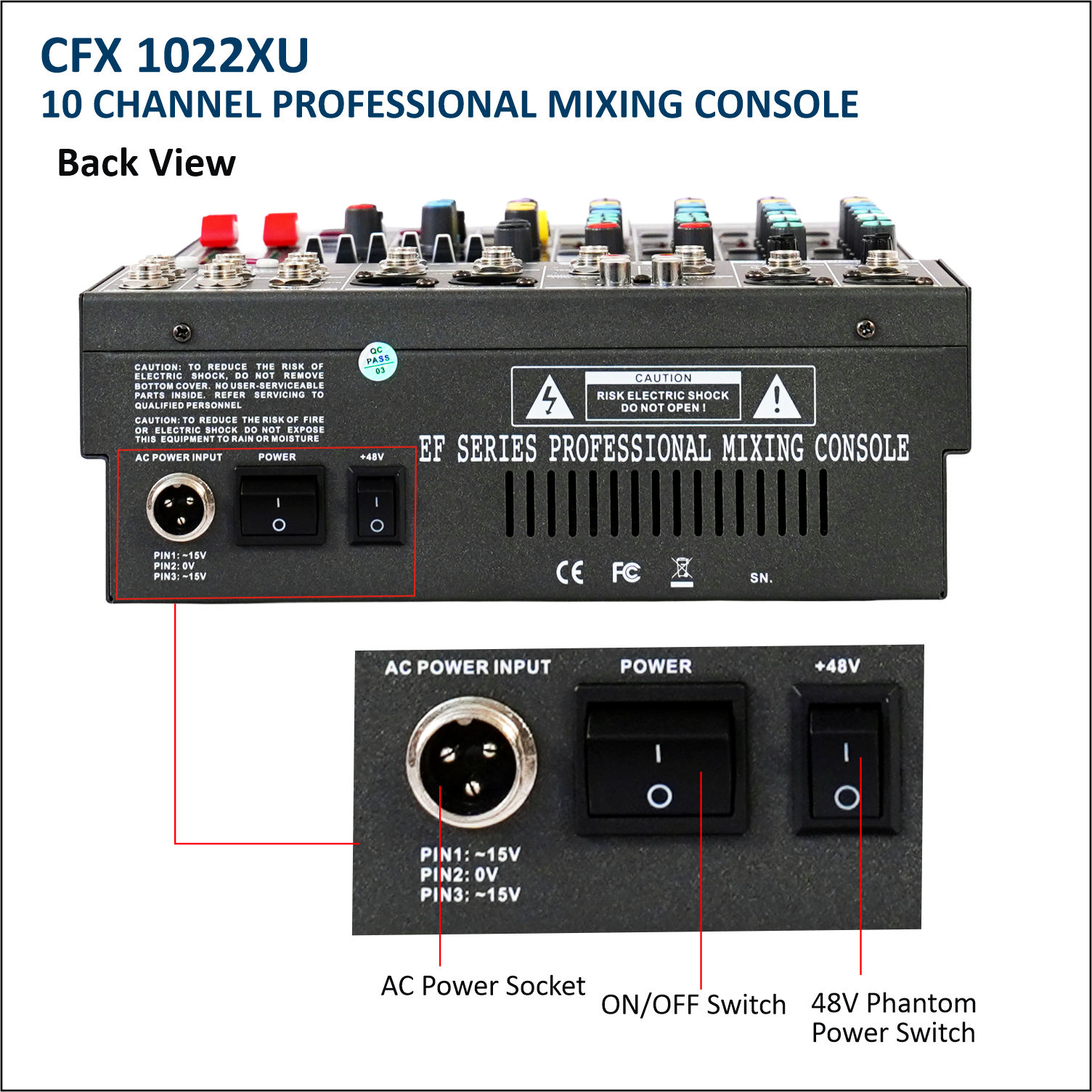

Phantom supply 48VDC

Power supply AC100~120V/200~240V 50/60Hz

dimensions(W’D’H)mm 34.2*38*8

Net weight(kgs) 8.6
