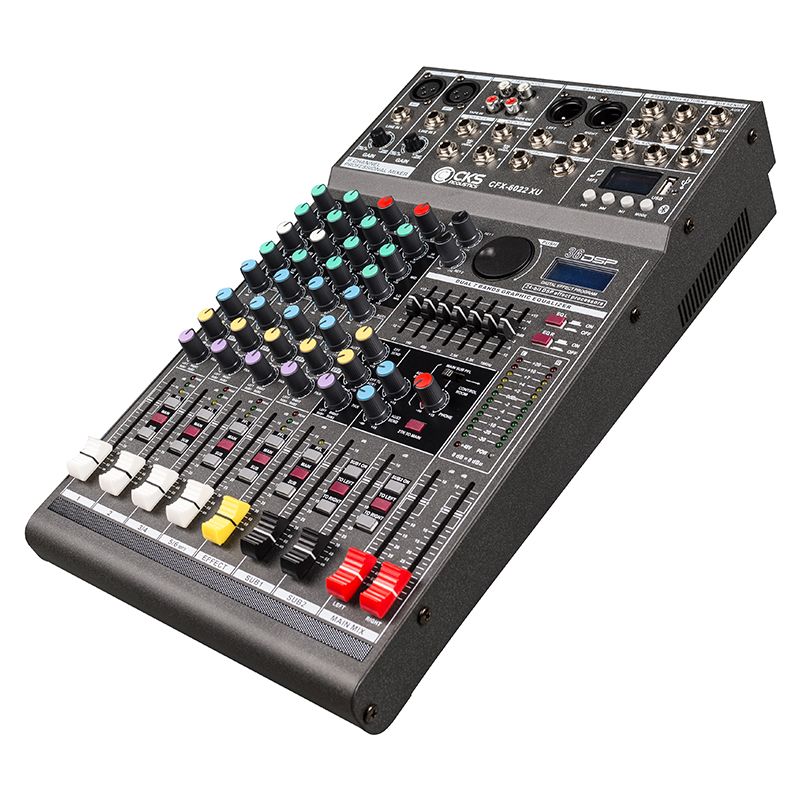

Pa Mixer Model CFX6022XU
Pa Mixer Model CFX6022XU
- Dual 7 band Graphic Equalizer
- Rotary control knobs per channel
- 24 bit DSP effect processing
- 2 sub group out, 2 main mix out
- 36 Effect modes, power-off memory, CD liquid crystal display, easy to operate.
- Global phantom power
- High quality USB MP3 Player and Bluetooth on board.
- 48kHz sampling frequency.
- Standard double 12 segment level meter.
Specification :
| lnputs | 2Mic/Line +2 Stereo |
| Nominal Gain (Mic/Line/Stereo line) | 60Db |
| Max Gain (Mic/Line/Stereo line) | 80DB |
| Input Levels Sensitivity | (20 HZ-20KHz) |
| Mic(Gain Min/Gain Max) | (+10 to +60db) |
| Line(Gain Min/Gain Max) | (-10 to +40db) |
| Input Impedance | MIC input: ≥ 1.0k Ω /line output: ≥ 10K Ω |
| Main Output Level(Nominal/Max) | Balanced XLR socket, unbalanced 1 / 4 socket |
| Main Output Impedance | About 240Ω for balanced type and 120Ω for unbalanced type |
| Frequency Response | 20Hz~20KHz(+1,-3dB) |
| Total Harmonic Distortion | ≤0.01%（＋4dB，1KHz） |
| Signal to Noise Ratio | ≥113dB Ω |
| Equalisation(Mic/Stereo Line) | 12KHz＋/-15dB MF：5KHz＋/-15dB LF：80Hz＋/-15dB |
| Effect | 36 Effects 24-bit DSP，48KHz |
| Phantom Supply | 48VDC |
| Power Supply | AC100~120V/200~240V 50/60Hz |
| Dimensions(W*D*H)mm | 26*38*8 |
| Net Weight(kgs.) | 4.6 |
