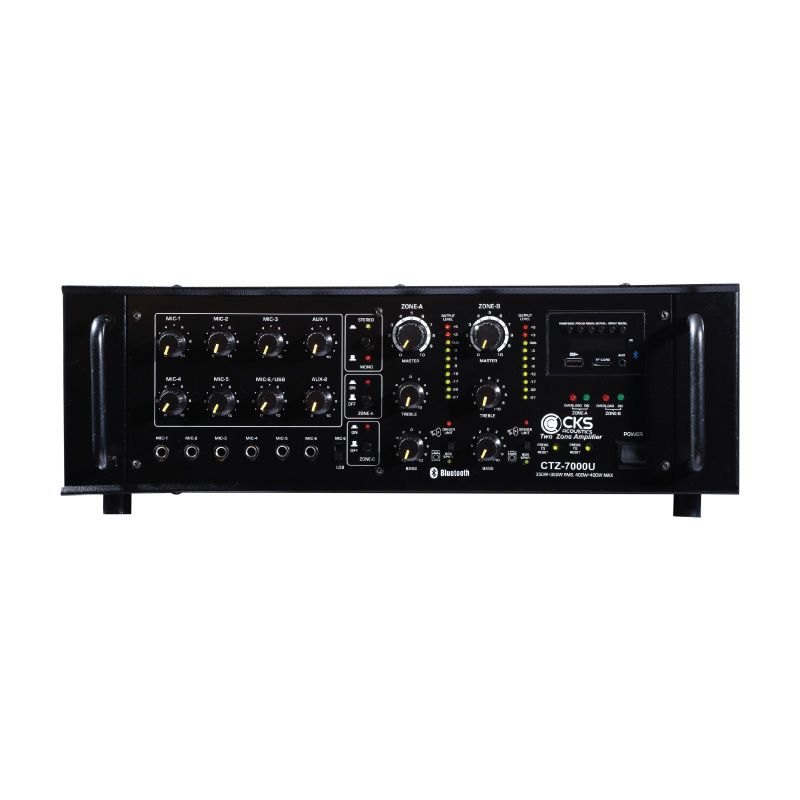

PA Amplifier Model CTZ 7000U
PA Amplifier Model CTZ 7000U
- 200 + 200 Watt / 350 + 350 Watt zone PA Amplifier
- 2-zone booster amplifier with each zone having its independent tone and master controls for separate and combined operation
- Individual zone ON/OFF Facility for output to maintain desire level and zones can be ON/OFF without disturbing volume settings.
- Line input and output on each zone.
- 2 zone music operations For DJ and Live programs
- Two separate groups of speakers simultaneously can be operated on Mono mode ideal for Places of Worship
- Built-in FM, MP3 Player Through USB, SD & MMC card reader with remote control
- AC & 36V DC Operation
Specification :
| Power Supply | AC: 220-240, 50/60Hz DC: 36V Car Battery |
| Power Output | 200W + 200W, 10% THD at 300W RMS Max. Each Zone |
| Input Channels | Stereo input 200mV/100kΩ Line input 1V/50kΩ 6xMic.1mV/4.7kΩ 2x Aux. 100mV/470kΩ |
| Frequency Response | 50-15000 Hz±3 dB For Each Zone |
| Tone Control | Bass: (100Hz) ±10db Treble: (10 kHz) ±10db |
| Digital Player | FM , Mp3 Player, Through USB, SD & MMC CARD READER WITH REMOTE CONTROl |
| Speaker Output | 4Ω , 8Ω, 70V & 100V for Each Zone |
